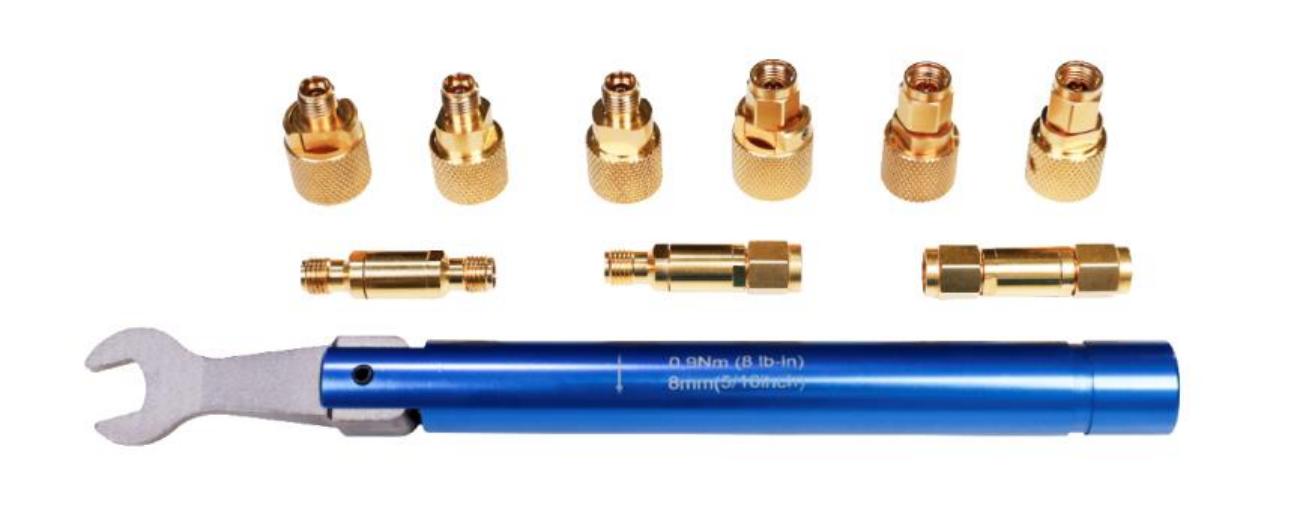

鼎阳科技F606 和 Y606 系列
性能参数
|
型号 |
类型 |
连接形式 |
参数 |
|
|
F606TS |
F606MS/ Y606MS |
开路 Open |
3.5mm - Male |
DC – 26.5 GHz, Phase Deviation* ≤ ± 1.5° |
|
短路 Short |
3.5mm - Male |
DC – 26.5 GHz, Phase Deviation ≤ ± 1.5° |
||
|
匹配 Load |
3.5mm - Male |
DC – 26.5 GHz, SWR ≤ 1.04 |
||
|
直通 Adapter |
3.5mm - Male to 3.5mm - Male |
DC – 26.5 GHz, SWR ≤1.06 |
||
|
F606FS/ Y606FS |
开路 Open |
3.5mm - Female |
DC – 26.5 GHz, Phase Deviation ≤ ± 1.5° |
|
|
短路 Short |
3.5mm - Female |
DC – 26.5 GHz, Phase Deviation ≤ ± 1.5° |
||
|
匹配 Load |
3.5mm - Female |
DC – 26.5 GHz, SWR ≤ 1.04 |
||
|
直通 Adapter |
3.5mm - Female to 3.5mm - Female |
DC – 26.5 GHz, SWR ≤ 1.06 |
||
|
直通 Adapter |
3.5mm - male to 3.5mm - Female |
DC – 26.5 GHz, SWR ≤ 1.06 |
||
|
扳手 Wrench |
3.5mm - 8mm |
0.9 Nm |
||
*与标准相位的相对误差
一般指标
|
阻抗 |
50 Ω |
功率 |
≤ 0.5 W |
|
接头标准 |
IEEE Std 287 |
匹配周期（次） |
> 2000 |
|
力矩 |
0.9 Nm |
扳手类型 |
8 mm |
|
工作温度 |
+ 15 。C ~ + 35 。C |
|
|
